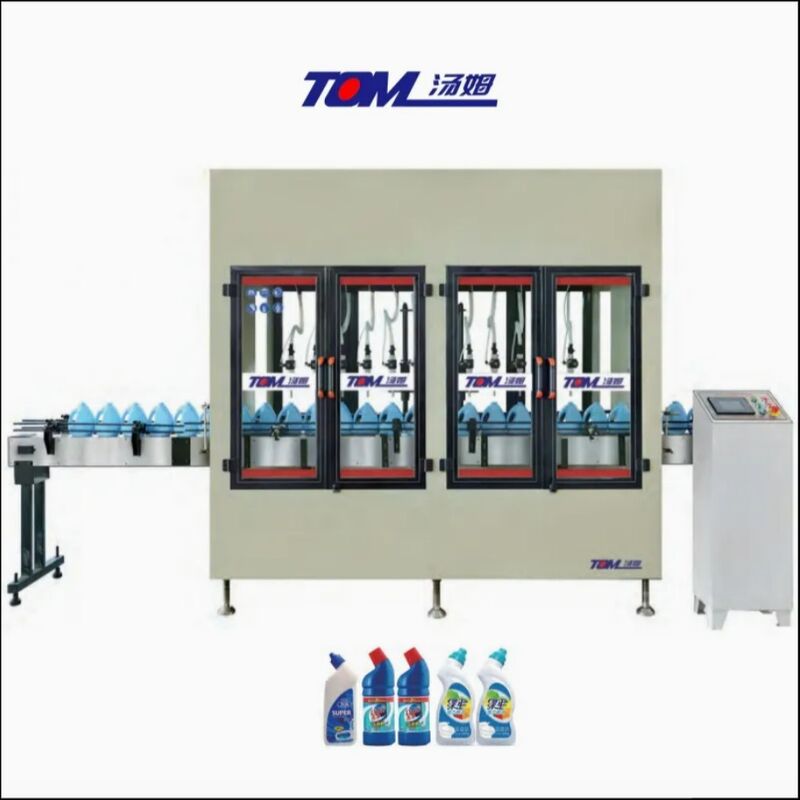

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production

Name: Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production
Brand: Jiangsu TOM Intelligent Equipment Co., Ltd.,
SKU: 500～3000ml
Price: 55,000.00 USD
Availability: InStock

プロダクト細部

起源の場所: 江蘇、中国

ブランド名: TOM

証明: CE ISO SGS

モデル番号: 500～3000ml

文書: 製品説明書 PDF

支払及び船積みの言葉

最小注文数量: 1

最もよい価格を得なさい

プロダクト細部

製品の説明

ハイライト:
                                                Toilet Cleaning Liquid Filling Machine, Cleaning Liquid Filling Machine, Efficient Production Disinfectant Filling Machine


Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production

Product Description

Full Automatic 10ml-100ml Pesticide Rotary Tracking High Speed Filling Line

Main features:

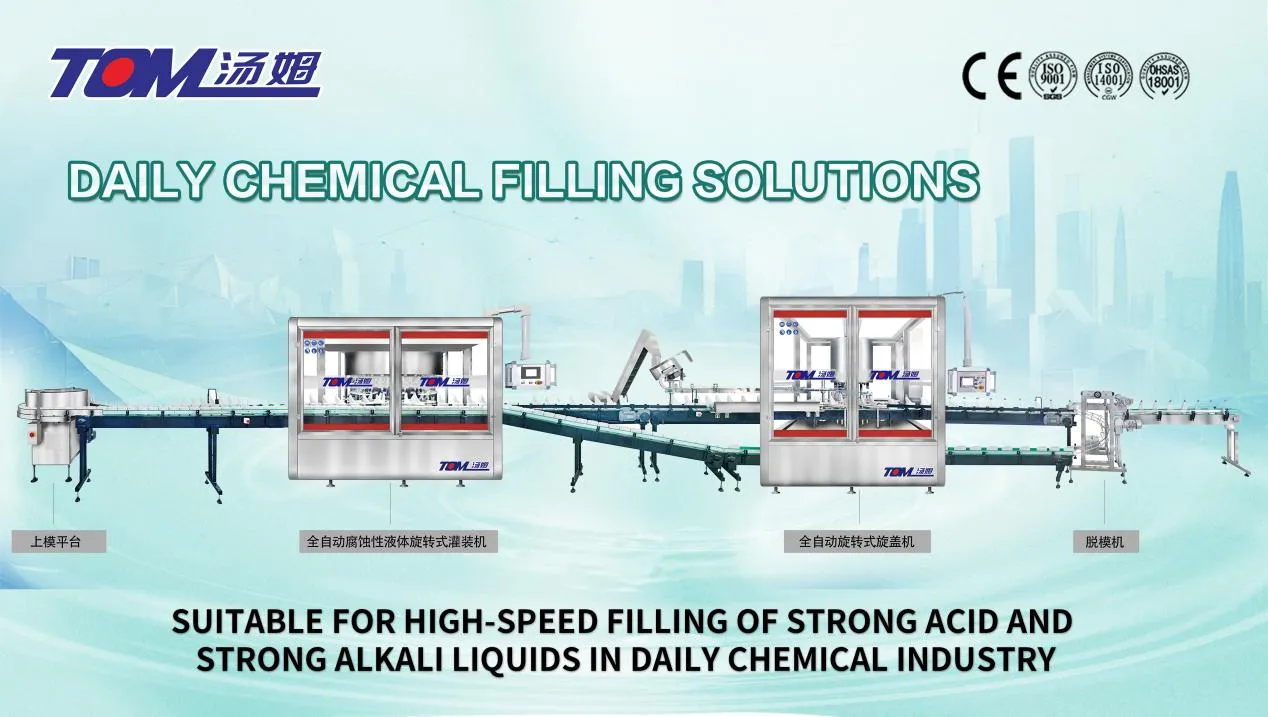

Suitable for high-speed filling of strong acid and strong alkali liquids in daily chemical industry;
The whole machine has compact structure, simple transmission, long service life of parts, convenient maintenance, few wearing parts and low operating noise.
It has advantages of high filling measurement accuracy, extremely fast filling speed and no dripping;
The exposed parts are made of stainless steel with coating, and the parts directly in contact with materials are made of non-metallic materials, which have great anti-corrosion performance;
The machine has beautiful and elegant appearance, does not pollute the environment, and meets GMP standards;
Bottle molds are used for filling special-shaped bottles in the daily chemical industry. To charge specifications, you only need to replace the corresponding the bottle molds to achieve efficient production change.

Main parameters:

Power supply	AC38OV,50/60HZ
Single line power	62KW
Gas source pressure	(0.6-0.7) MPa Dry, clean and stable gas source
Single line gas consumption	1.2m ³/min

Intelligent workstation type bottle sorting machine (mechanical fallen bottle removal)

Applicable bottle type: diameter 20-60mm, height 50-150mm

Production capacity: ≤ 12000 bottles/hour

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 1

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 2

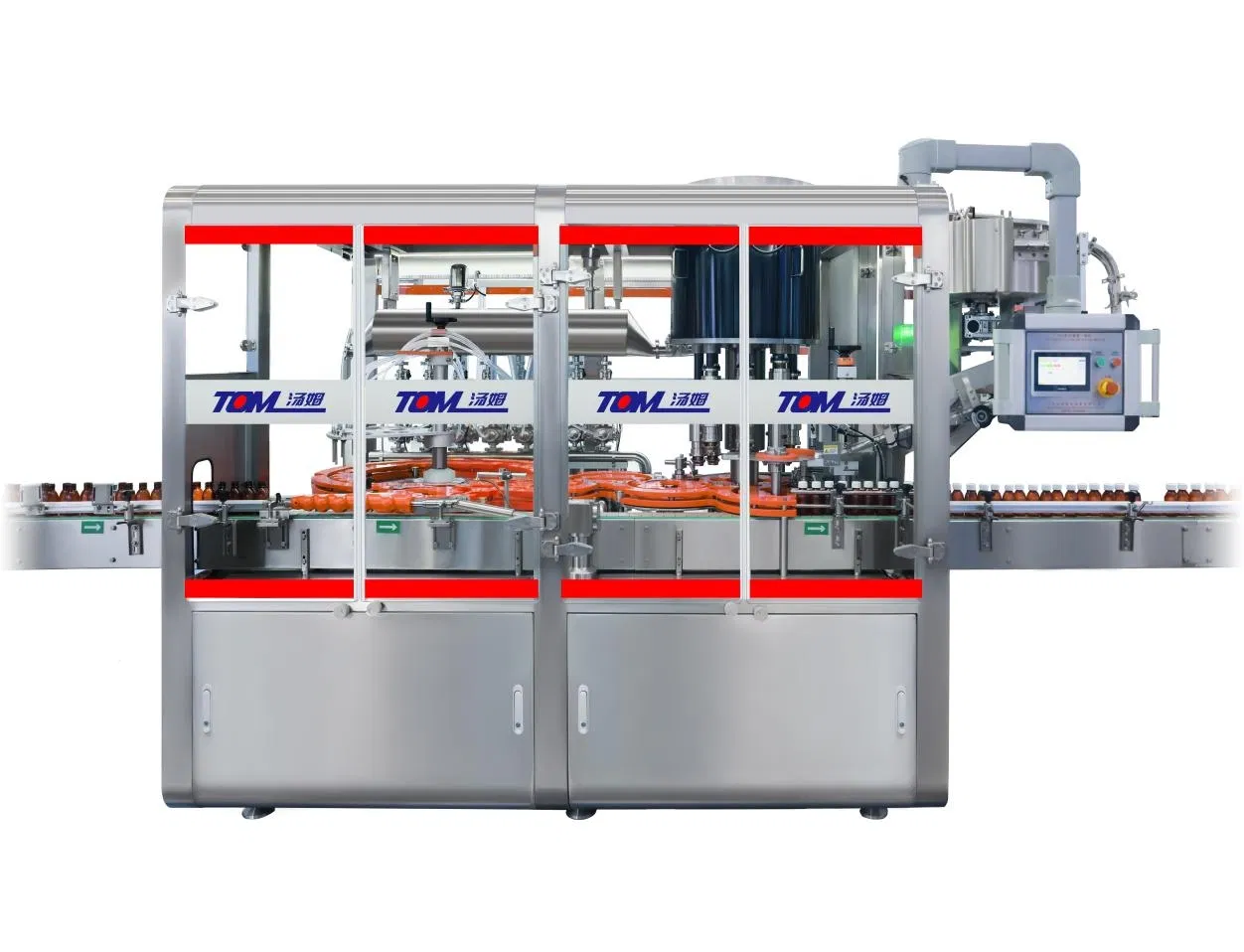

GXXC-16-12 Intelligent Rotary Tracking Filling and Capping Integrated Machine

Applicable bottle type: diameter 20-60mm, height 50-150mm

Production capacity: 10-100ml ≤ 12000 bottles/hour

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 3

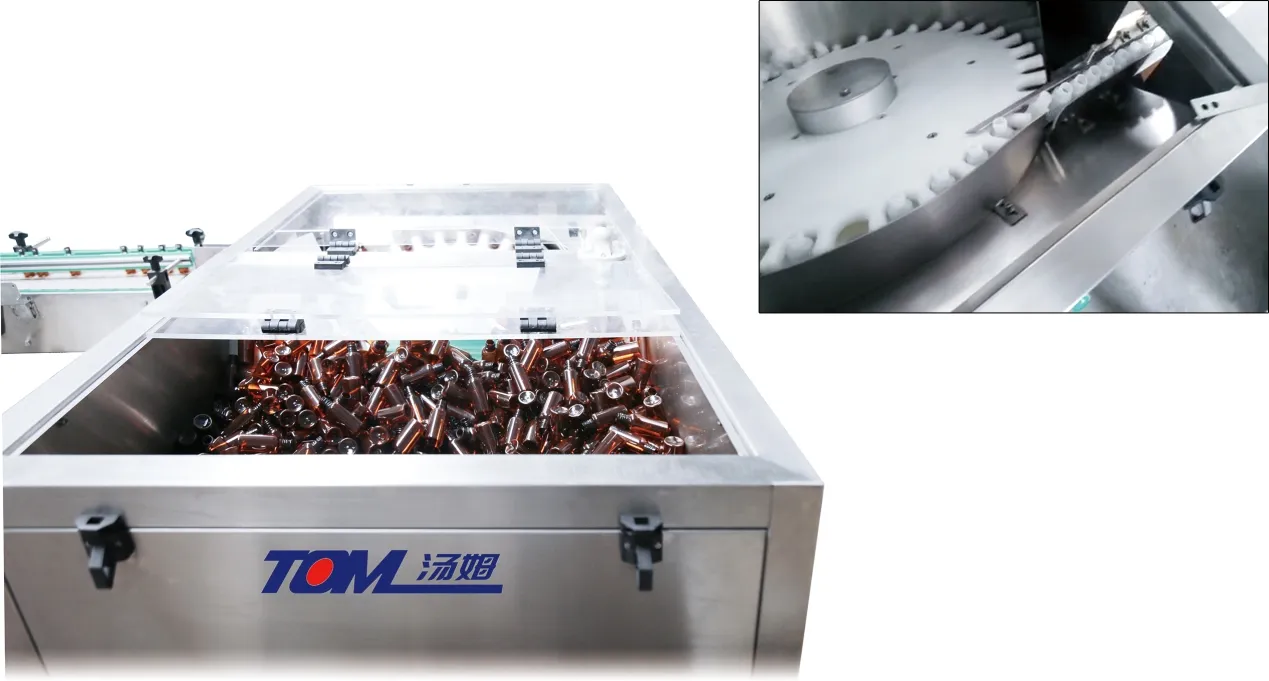

Intelligent workstation type bottle sorting machine (mechanical fallen bottle removal)

Applicable bottle type: diameter 20-60mm, height 50-150mm, production capacity: ≤ 12000 bottles/hour

GXXC-16-12 Intelligent Rotary Tracking Filling and Capping Integrated Machine

Applicable bottle type: diameter 20-60mm, height 50-150mm, production capacity: 10-100ml ≤ 12000 bottles/hour

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 4

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 5

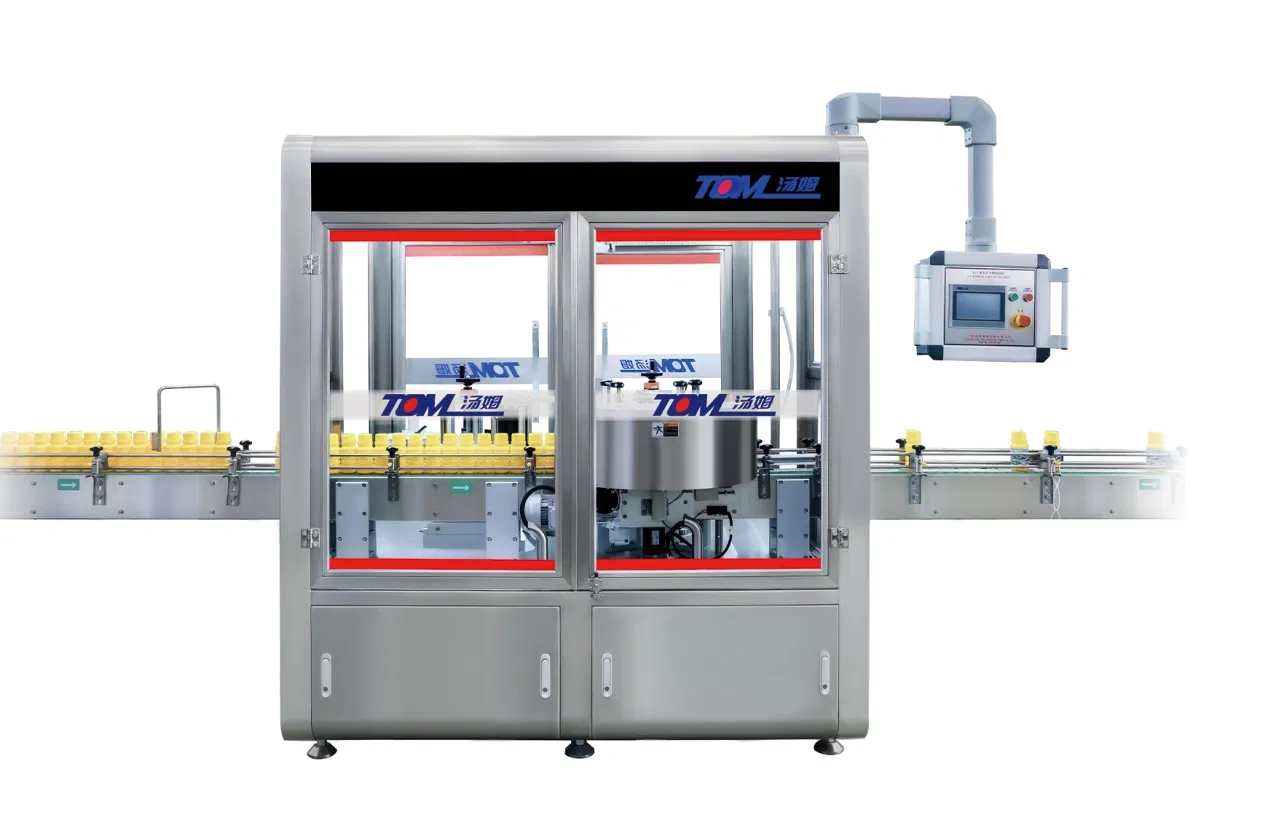

TBJ-10Y-A Intelligent Labeling Machine

Size range: diameter 20-60mm
Label height: (30-90) mm, length: (40-140) mm
Production capacity: ≤ 12000 bottles/hour
Labeling accuracy: ± 1mm

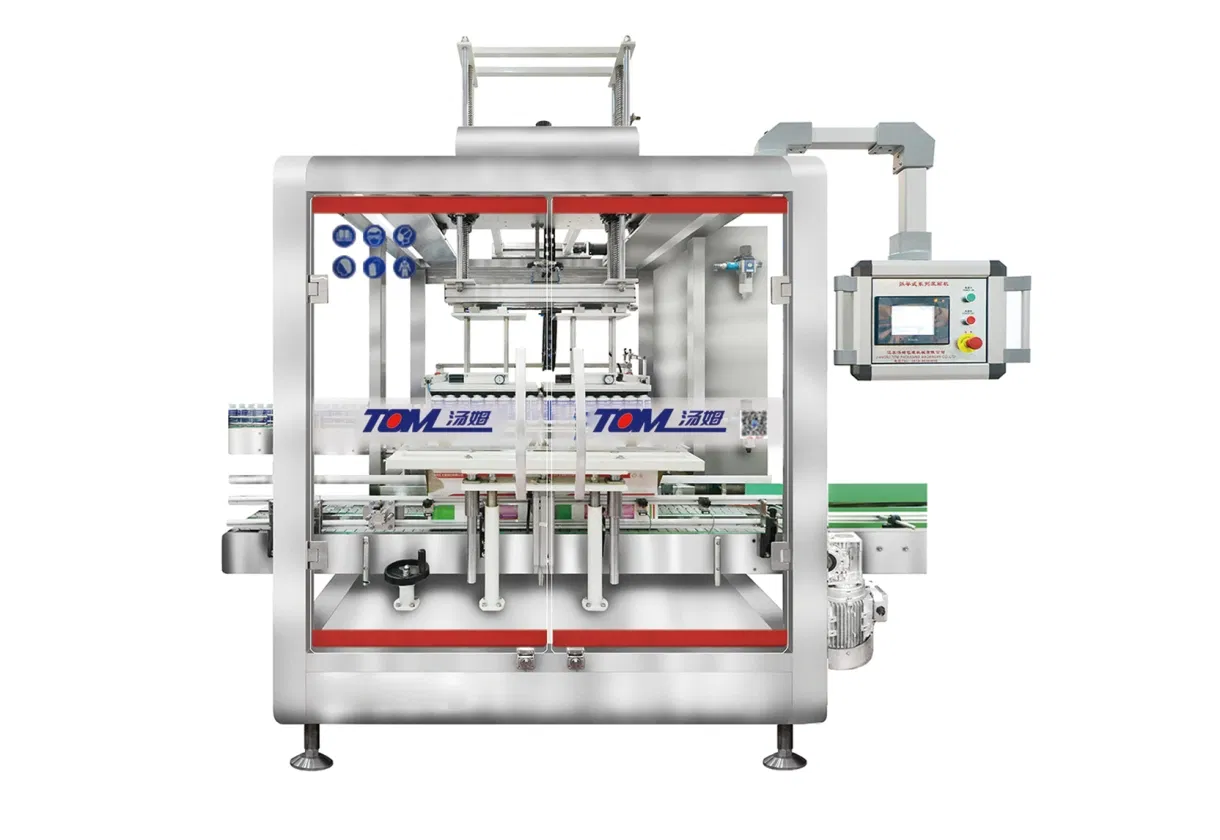

ZZP-2NA Automatic case packer

Applicable bottle type: diameter 20-60mm, height 50-150mm. Carton specifications: length 300-500mm, width 200-400mm,
Height 100-300mm
Capacity: 6-8 boxes/min

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 6

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 7

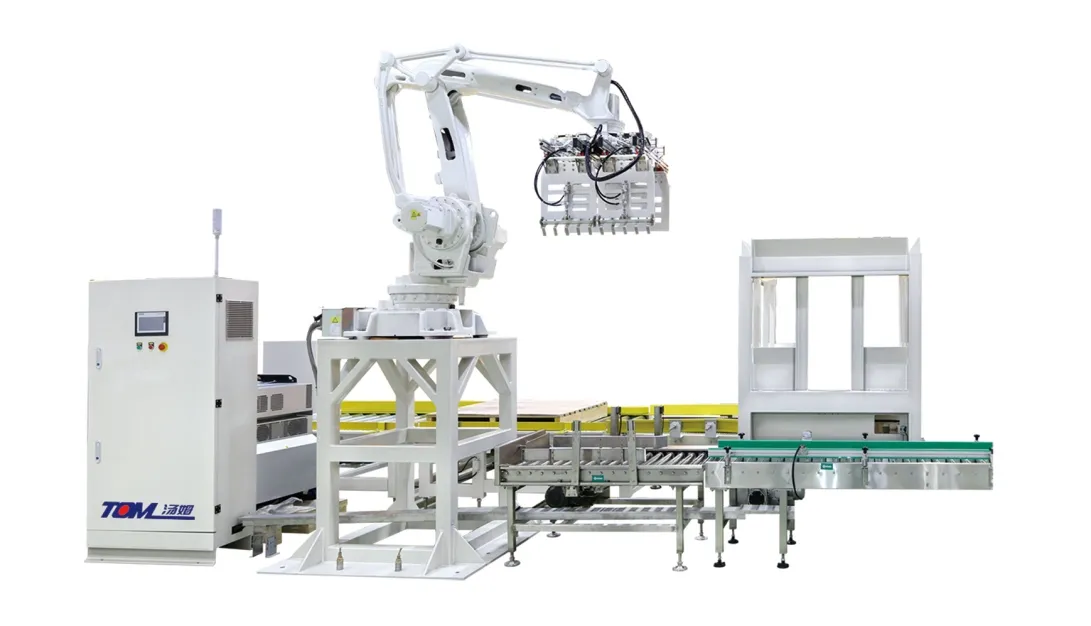

Robot palletizer

Maximum payload: 20Kg
Capacity: 4-8 boxes/min Working radius: 1600mm Vertical distance: 2100mm

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 8

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 9

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 10

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 11

Advanced Toilet Cleaning Liquid Filling Machine For Efficient Production 12
